A6 - SYSTEM - EXP
Non-accessible self-protected roof
|
CE Marking Technical Approval European Technical Approval | SOPRAFIX | ||
|---|---|---|---|

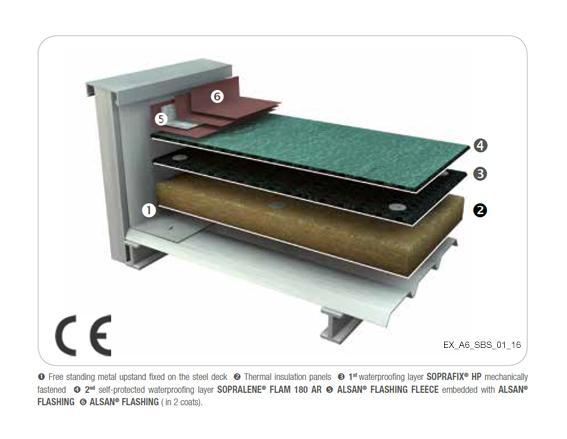

| Bilayer SBS System | |||
| 2nd layer | |||
| 1st mechanically fastened layer | |||
| Total thickness | 5.5mm | ||
| Performance | L 4 | ||
Soprema advices:
- Upstand variant: Alsan® FLASHING (European Technical Approval ETA-08/0114) will avoid the use of counter flashing protection on parapets.
- This no-flame system is easy to apply and saves application time.
- The positioning of drainage outlets implies a specific designing of the valley structure under water stagnation.
- A 3% slope on the roof avoids water stagnation.
website.guides.summary
- TYPE OF WORK non-accessible
- TYPE OF PROJECT Self-protected roof
- SUBSTRATE Steel deck substrate
- THERMAL INSULATION With insulation
- SLOPE > or = to 3%
