B3' - SYSTEM - EXP

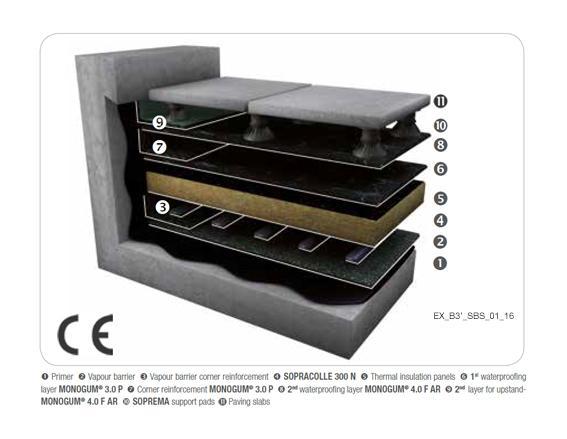

Pedestrian-accessible roof with paving slabs
| CE Marking | MONOGUM | ||
|---|---|---|---|
| Bilayer APP SYSTEM | |||
| 2nd layer | |||
| 1st layer | |||
| Total thickness | 7mm | ||
| Performance | F 5 I 5 T 4 | ||
Soprema advices:
- Upstand variant: Alsan® FLASHING (European Technical Approval ETA-08/0114) will avoid the use of counter flashing protection on parapets. This no-flame system is easy to apply and saves application time.
- A ≥ 2% slope will avoid water stagnation and the risk of foul odours.
- With high SOPREMA adjustable support pads, upstands can be hidden to reduce the height to 10cm without mechanical protection.
- The self-protected cap sheet provides further fire protection and easy maintenance (self-washing and non adhered support pads).
- SOPRAVAP® 3 IN 1 is an optimal solution combining three functions: primer, vapour barrier and insulation adhesive. Do not hesitate to contact our technical team for advice.
website.guides.summary
- TYPE OF WORK Pedestrian accessible roof
- TYPE OF PROJECT Paving slabs
- SUBSTRATE Reinforced concrete substrate
- THERMAL INSULATION With insulation
- SLOPE 0 - 5 %
